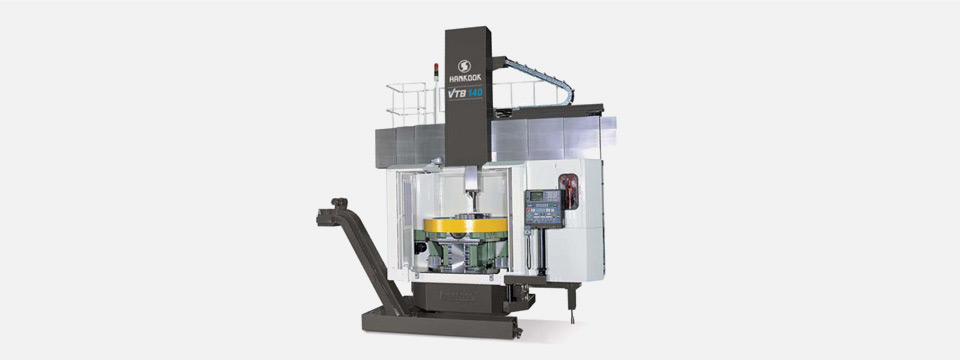

VTB (C)

100 / 125 / 140 / 160 / 160FD

CNC Vertical Boring & Turning Mills. Heavy Duty, High Precision, Vertical Boring and Turning Mills. Designed to Deliver Superior Performance

High Productivity

  1. Maximum 1250 to 3000mm turning capacity
  2. Maximum 4 to 15 tons load capable table
  3. Elevating cross rail of 700 and 1000mm travel
  4. Full controlled C-axis and rotary spindle (only for VTC)
  5. Automatic tool changing system up to 12/24 (VTB/VTC) tools

High Reliability

  1. Heavy duty, wide guide ways of box type
  2. Massive one-piece cast iron bed, column, saddle, and cross-rail
  3. Induction-hardened and precise-ground guide ways
  4. Extra large 220, 240 and 280mm square spheroidal-graphite-iron ram
  5. The saddle enclosing the ram is one-piece casting to keep the high rigidity

High Accuracy

  1. Qualified precision bearings & ball screws
  2. Fluoroplastic-bonded & hand-scraped guide ways
  3. Full automatic lubrication to all critical areas

Machine Construction

The column, cross rail, bed, saddle, and table are constructed of high quality Meehanite cast iron. These main components are densely ribbed, thick walled, and fully stress relieved for long lasting accuracy.

Saddle & Ram

  1. The saddle enclosing the ram is one-piece casting to keep the high rigidity.
  2. huge 220, 240 and 280mm square spheroidal graphite iron ram,hardened and ground, is encased in the heavily ribbed saddle and is hydraulically counter balanced.
  3. Low friction fluroplasitc resin bonded to the ram sliding surfaces of the saddle minimizes friction.
  4. ModelVTC has milling spindle with high-speed that involves drilling, milling, and tapping.
  5. Pull stud tool mounting and dismounting way of machining center type(P50T-I / DIN. 69872.50).
  6. Automatic metered lubrication system ensures lasting accuracy.
  7. Tool fall-safety device assures safe operation.
Items Unit VTB/VTC
100T 100 125 125E 140 140E 160 160E 200E 250E
Capacity  Max. turning diameter mm(inch)  1250(49.2) 1600(63) 2000(78.7) 2500(98.4) 3000(118)
Max. turning height mm(inch) 800(31.5) 900(35.4) 1400(55.1) 2000(78.7) 2000(78.7)
Max. torque N.m(lbf.ft) 12005(8860) 17885(13200) 20433(15100) 23863(17600) 40403(29800) 55010(40650)
Max. cutting force kgf(lbs) 2000(4410) 3000(6615) 3000(6615) 5000(11020)
Max. workpiece weight kg(lbs) 4000(8820) 8000(17640)  10000(22100) 12000(26000) 15000(33000)
Table Table diameter mm(inch) 1000(39.4) 1250(49.2) 1400(55.1) 1600(63) 2000(79) 2500(98.4)
Table speed rpm 1.1~450 0.9~360 0.8~320 0.7~280 1~200 1~150
Table speed range step Auto. 2-step
C-axis(VTC) Min. index angle deg. 0.001°
Cutting feedrate deg/min 0~1200 0~900
Max. speed rpm 3.333 2.5
Ram Head Tool size mm(inch) 32(1 1/4) 50(2)
Spindle Taper  ISO 7/24 No.50
Mill spindle speed rpm 30~3000 15~1500
Max. mill spindle torque N.m(lbf.ft) - 186(137) 235(173) 280(206) 280(206)
Ram cross section mm(inch) 220×220(8.66x8.66) 240×240(9.4x9.4) 280×280(11x11)
Travel & Feedrate X-axis travel(Saddle horizontal) mm(inch) 1390(55) 1300(51) 1600(63) 1900(75) 1500(59.1) 1700(67)
Z-axis travel(Ram vertical) mm(inch) 800(31.5) 900(35.4) 900(35.4) 1500(59.1) 1600(63)
Vertical travel of cross rail mm(inch) - 700(27.5) 1000(39.4)
X/Z-axis travel of cross rail mm/min(ipm) Max. 7500(295) Max.10000(394)
X/Z-axis rapid traverse mm/min(ipm) 7500(295) 10000(394)
Cross rail rapid traverse mm/min(ipm) - 300(12) 300(11.8)
ATC Type of tool holder - MAS BT50
Tool magazine capacity VTB set Turning 6-tool: VTB-100T, Turning12-tool:VTB-100/125/140/160 24-tool
(Turning 12, Milling 12)
VTC 16-tool(Turning 8, Milling 8):VTC-100
24-tool(Turning 12, Milling 12):VTC-125/140/160
Max. tool weight kg(lbs) 50(110) 50(110) 70(110)
Type of pull stud - P50T-I:VTB/DIN.69872.50:VTC
Motor Table motor kW(Hp)
(Cont./30min)
AC30/37 (40/50) AC 37/45 (50/60) AC 45/55 (60/73) AC 60/75 (80/100)
Mill spindle motor - AC 11/15 AC 15/18.5 (20/25) AC 18.5/22 (25/30) AC 22/26 (30/35)
C-axis motor kW (Hp) - AC 4 (5.3) AC 7 (9.3) AC 9 (12) AC 9 (12)
X/Z-axis servo motor kW (Hp) AC 4 (5.3) AC 7 (9.3) AC 7 (9.3) AC 9/4 (2 set)
Power
Source
Input power supply - AC 200/220 ±10%,50/60Hz ±1%
Power capavity (VTB/VTC) kVA 65/70 75/80 150 200
Machine Size Height mm(inch) 4505 (159) 4690 (185) 5190 (204) 7260(286) 7720(305)
Floor space (L×W) mm(inch) 4685×3880 (184×153) 4875×3885 (192×153) 5285×4515
(208×178)
6280×4500
(247×177)
9150×6020
(360×237)
Weight kg(lbs) 28500
(62800)
29000
(63900)
30000
(66200)
31000
(68300)
34000
(74900)
45000
(99200)
60000
(132,300)
CNC Controller - FANUC 32i-A

Automatic Tool Changer

Hydraulic Chuck

Grainding Attachment

Tool Setter

Capto Tool Holder (C6)

C-axis Brake

Work Probe

Automatic Index Chuck (for machining small valve)

Electrical V-6 Turret (VTB-100T only)

Automatic Pallet Changer (2 pallets)

Automatic Index Chuck (for machining large valve)

Tuning

Face Milling

End Milling

Drilling
